Model:CH-60 hydraulic punching machine

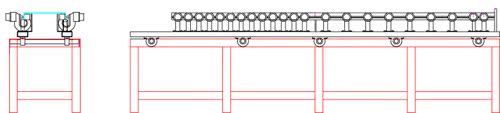

◆ Use : CH-60 modular hydraulic punching machine is the recently developed based on user needs for copper , aluminum row , angle, channel , slot aluminum , iron and other metal materials punching hydraulic punching tool. The figure includes 22 units CH-60 punching machines lined up, with a large flow pump driven at last even the red aluminum groove 22 holes , 22 holes within 5 seconds the same order as the ring torrent Flush . Speed, high efficiency , won favorite.
◆ Features : 1. Punching fast , accurate positioning. No dry sound , no chips , clean .2 safe operation and easy installation , suitable for fixed plant for mass production . 3 Oil return hole type . Cr12 mold using hardened by heat treatment made stamping resistance , long life. 4 can produce various shapes of punching die .
◆ Accessories: random with mold Φ10.5, Φ13.8, Φ17.5, Φ20.5 four pay . Fixed and each one hex wrench . The remaining mold : Φ5.5, Φ6, Φ6.5, Φ7, Φ7.5, Φ8, Φ9 be customized.
◆ Output : 31T.
◆ Maximum punching thickness: copper, aluminum : 10mm; iron : 6mm.
◆ Throat depth : 95mm.
◆ Weight : 13.5kg.
◆ With pump : hand pump, foot pump , hydraulic electric pump . ◆ Packing: wooden box.
