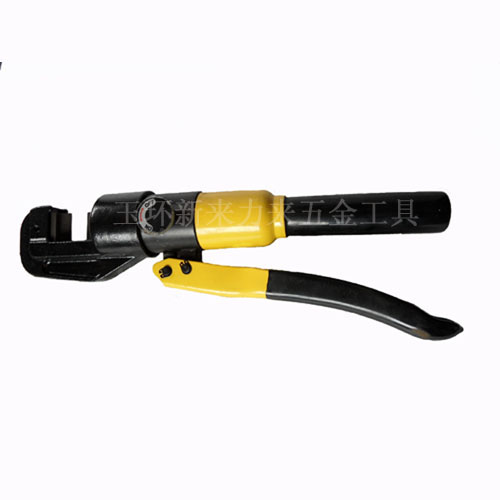

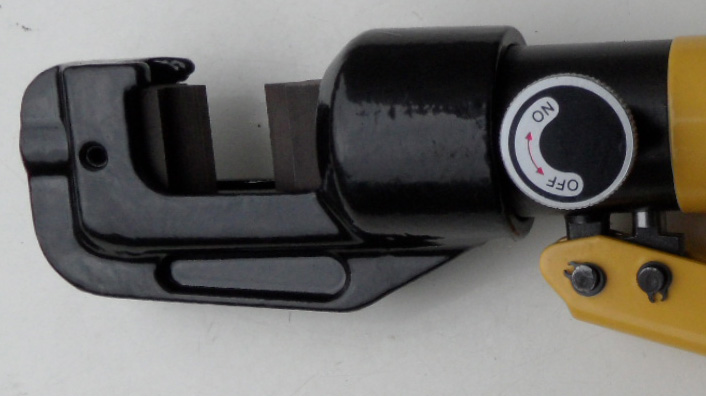

Model：CPC-12AHydraulic Rebar Cutter

◆ Name : CPC-12A manual Integral Hydraulic Rebar Cutter
◆ Uses: This product is the latest development of high-precision hydraulic cutting tools for round steel, steel and other materials cut . Not stainless steel shear .
◆ Features : saving for easy to carry, suitable for field operations or at the factory for mass production.
◆ How to use:
1 prior to use compressed air a few times, check the alignment or misalignment head .
2 In the shearing round , the round must be perpendicular to the shear plane , such as found in the shear bar tilted to one side , you should immediately stop cut, repositioned , otherwise it will cause head injury .
3 Cut , first tighten clockwise back to the oil switch, shake the handle , hydraulic elevated piston advancing blade cut steel, finish cut, this time not to boost, to avoid damage to the blade.
4 Loosen the oil return screw heads automatic retraction . The tool is not in use, the oil must be put back to tighten the screws , and then Air looked so certain pressure storage tanks to prevent leakage piston parts .
◆ Packing: plastic box.
◆ Technical parameters:

Model	Output（T）	Cut range(mm)	Stroke（mm）	Size(mm)	Weight（kg）
CPC-12A	8	φ4-φ12	11	305X100X55	1.6
