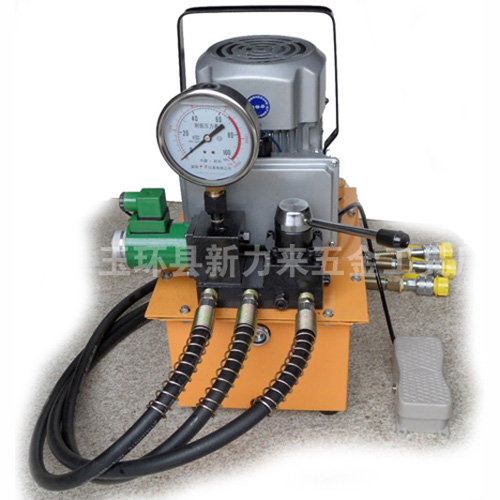

Model：ZCB-700ABCElectric hydraulic pump

◆ Structure : ZCB-700ABC three tubing hydraulic electric pumps are single -phase or three-phase asynchronous motors , reversing switches, high pressure pumps , tanks , tubing and other components. With small size , high pressure , light weight , simple structure , easy to use and so on. The pump reversing switch is a manual valve, to control the work station .
◆ Use: The pump is newly developed a new type of hydraulic power pumps , one pump is mainly used for multi-use in the workplace, such as for punching machines, cutting row machine, bending machine , three shared a pump machine , working alone. Handle to which station , and then use the foot pedal to work. Step forward , into the oil , oil pressure rise work ; subsequent step, back to the oil , oil pressure drop , return material back into position. Easy to apply , reduce labor intensity and improve working efficiency.
◆ Features: The pump is designed with high and low two out of oil , fast and efficient. Using pressure safety overload protection device , to avoid overload damage. Meanwhile a pressure gauge, can be observed at any pressure change when working . Tubing connector with PT3 / 8 " teeth .
◆ Packing : wooden box .
◆ technical parameters :

Model	ZHH-700ABC
Rated working pressure	High pressure：70MPa Low：0-2MPa
Flow	High pressure：1-2L/min Low：5-10L/min
Oil volume	7-40L
Voltage	220V,380V
Motor Power	0.75KW，1.5KW、2.2KW、3KW
Dimensions	500x350x550
Weight	35kg
