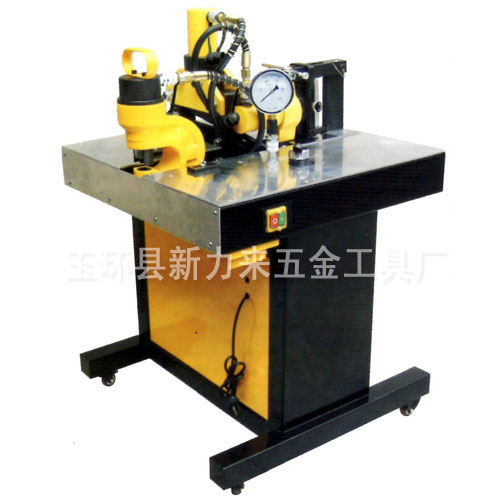

Model:DHY-150DTriple bus machine

◆ Uses and characteristics : DHY-150D triple busbar processing machine is the introduction of foreign advanced technology, combined with years of experience in design and development of an efficient and versatile machine bus . Widely used in electric power, telecommunications, railways, petrochemicals , shipping and other industries, suitable for transmission and distribution in a large workshop and site construction work , as well as power distribution cabinets and switchgear and other electrical factory use . For busbar cutting, punching , bending three-position processing, easy to operate, save time, high production efficiency.
◆ Main Structure: This product is made with solenoid valve hydraulic electric pump , CH-60 punching machine , CWC-150 cut row machine , CB-150D bending row machine , table , switches and other components. 1 electric hydraulic pump : single phase , 220V, rated working pressure : 70MPa.2.CH-60 punching machine : Output 31T, Throat depth : 95mm, maximum thickness of copper processing 10mm, standard with mold : Φ10.5, Φ13.8, Φ17.5, Φ20.5 four pay , another can be customized party mode and a long strip of the mold. 3.CWC-150 cut row machine : Output : 15T, processing capacity : copper 150mm wide X10mm thick. 4.CB-150D bending machine : Output : 16T. Processing capacity : 150mm Width X12 mm thick , angle 0-90 degrees .
◆ Usage: First products are ready to be processed , installed the appropriate mold each station , open hydraulic electric pump, the workpiece into the mold cavity , rotating three-position switch to specify a work station , turned to the next station after the completion of the work .
◆ Current Table size : 750mmX750mmX1000mm
◆ Weight : 165kg
◆ Packing : wooden box
