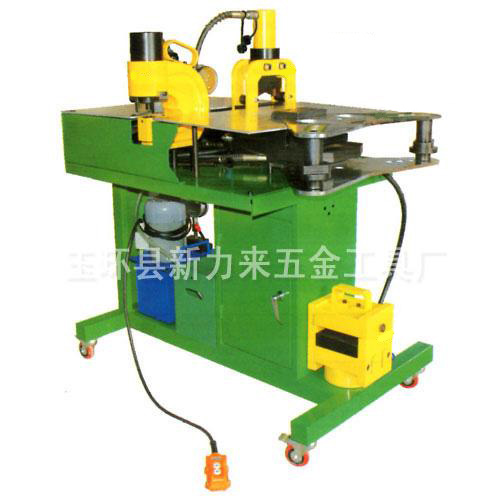

Model:VHB-502Observing (new)

◆ Product Description : VHB-502 Observing bus processing machine is the introduction of foreign advanced technology, combined with years of experience in design and development of an efficient and versatile machine bus . Widely used in electric power, telecommunications, railways, petrochemicals , shipping and other industries, suitable for transmission and distribution in a large workshop and site construction work , as well as power distribution cabinets and switchgear and other electrical factory use . For busbar cutting, punching , bending, vertical bending , embossing five bit processing , easy to operate , saving time , high production efficiency .
◆ Main Structure: This product is made with solenoid valve hydraulic electric pump , CH-70 punching machine , CWC-150 cut row machine , CB-125D Combo flat, vertical bending machine , embossing machine , table , switch and other components. 1 electric hydraulic pump : single phase , 220V, rated working pressure : 70MPa.2.CH-70 punching machine : Output 35T, Throat depth : 110mm, maximum thickness of copper processing 12mm, standard with mold : Φ10.5, Φ13.8, Φ17.5, Φ20.5 four pay , another can be customized party mode and a long strip of the mold. 3.CWC-150 cut row machine : 15T, processing capacity : copper 150mm wide X12mm thick. 4.CB-125D Combo flat, vertical bending machine : Capacity : 125mm Width X12.5 mm thick , angle 0-90 degrees , with a die set . 5. HYB-150A ( square) embossing machine: for copper and aluminum bus flatten at the connection , embossing , and enhance conductivity, extend the maintenance cycle. For busbars (mm): 150X12.5. Working Pressure (T): 80T. Working stroke (mm): 30
◆ Usage: First products are ready to be processed , installed the appropriate mold each station , open hydraulic electric pump, the workpiece into the mold cavity , rotating five -position switch to the specified one work station , turned to the next station after the completion of the work .
◆ Current Table size : 850mmX750mmX1100mm
◆ Weight : 275kg
◆ Packing : wooden box
