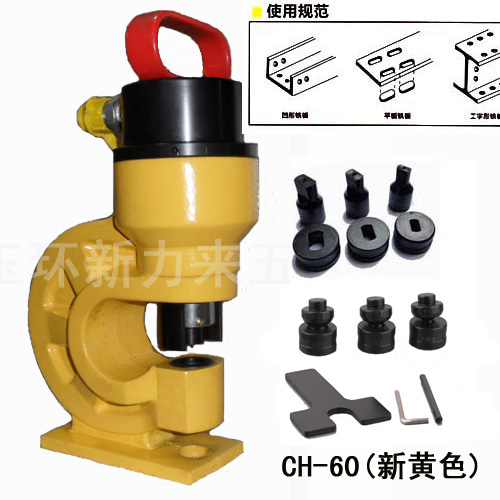

Model：CH-60Hydraulic punching machine

◆ Use: CH-60 hydraulic punching machine developed in recent years for copper, aluminum row, flat iron, angle iron, channel steel and other metal materials punching hydraulic punching tool.
◆ Features: 1. punching fast, accurate positioning. No dry sound, no chips, safe and clean operation .2 easy to carry, suitable for field work or fixed at the factory for mass production. 3 Oil return hole type. Mold is made by heat treatment and quenching, tolerance stamping, long life. 4 can produce various shapes of punching die, as long oval molds.
◆ Accessories: random with mold Φ10.5, Φ13.8, Φ17.5, Φ20.5 four pay. fixed and each one hex wrench. The remaining mold: Φ6, Φ7, Φ8, Φ9, Φ10, Φ11, Φ12, Φ13, Φ14, Φ15, Φ16, Φ17, Φ18, etc. to be customized.
◆ Output: 31T.

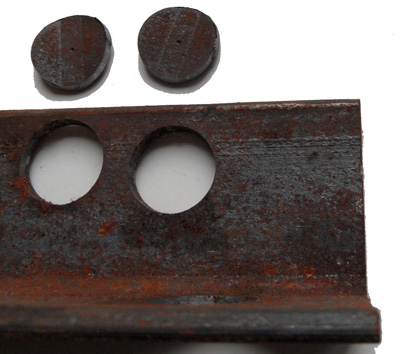

◆ Maximum punching thickness: copper, aluminum: 10mm; iron: 6mm.
◆ Throat depth: 95mm.
◆ Weight: 13.5kg.

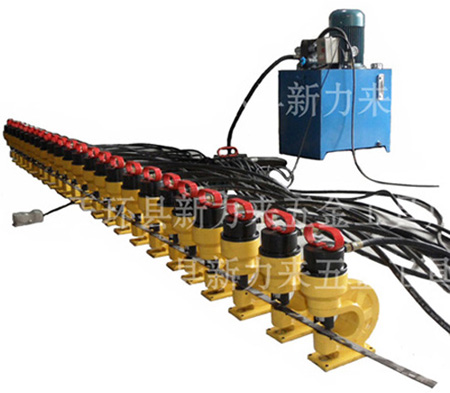

◆ With pump: hand pump, foot pump, hydraulic electric pump. If necessary, the user their own choice.
◆ Packing: wooden box.

3#，4 # punching angles and channels, the body needs the front line cutting. Angle channel, etc. for punching.
